PULL-OFF ADHESION TESTER

INTRODUCTION

PUII-OFF ADHESION TESTER is used to measure adhesion strength of coating adhere to the substrate.

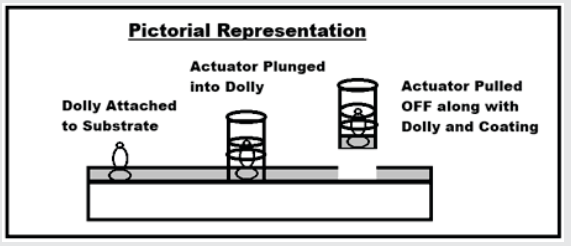

A dolly of fixed diameter is attached using glue to substrate surface whose coating adhesion is to be measured, it is then pulled perpendicular by using a hydraulic actuator and pressure pump assembly. When dolly gets pulled and separated from Substrate, the pressure is measured which defines quality of coating adhesion.

KEY FEATURES

1. Gauge Versatility:

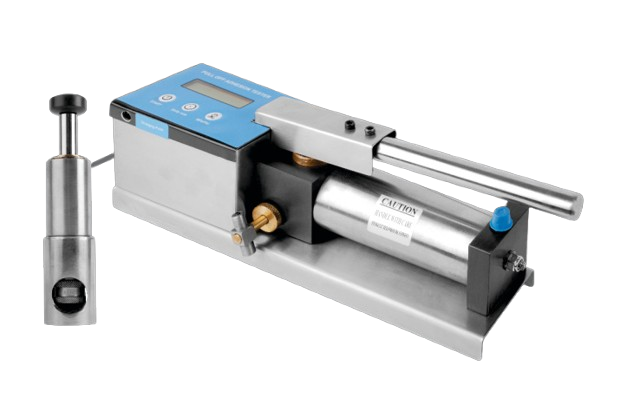

Instrument and compact hydraulic pump fitted on Stainless Steel Housing, correspondingly weighted having clear visual display along with attractive Membrane keypad.

2. Actuator Sensor and Hydraulic Assembly:

Well-balanced Probe Sensor With advanced actuator to connect pull off dollies with ease. Hydraulic setup like Pump and Handle are made ergonomic so as to make working with their hydraulic strokes easier.

3. Gauge Compatibility:

Gauge compatible with various dollies and attachment like 10mm, 14mm, 20mm (Ideal for measuring higher bond strength coatings on metals),50mm round (Ideal for measuring lower bond strength coatings on wood, concrete, and plastic) and 50 x 50 Square Dollies (Ideal for measuring lower bond strength coatings on wood, concrete, and plastic).

4. Dollies:

Dollies are made of Single Piece High Quality Stainless Steel have high breaking strength and hence are re-usable.

5. Wide Substrates and coatings:

Testing is usually performed on vast substrates, including metals, plastics, concrete, wood and glass. Compatible with various coating materials, like paint films and powder coatings, UV cured, ceramics, epoxies, bitumens (tar enamel, asphalt mastics), thermoplastic resins

6. Unit Selection:

Easy selection of Measured Value in PSI or MPa.

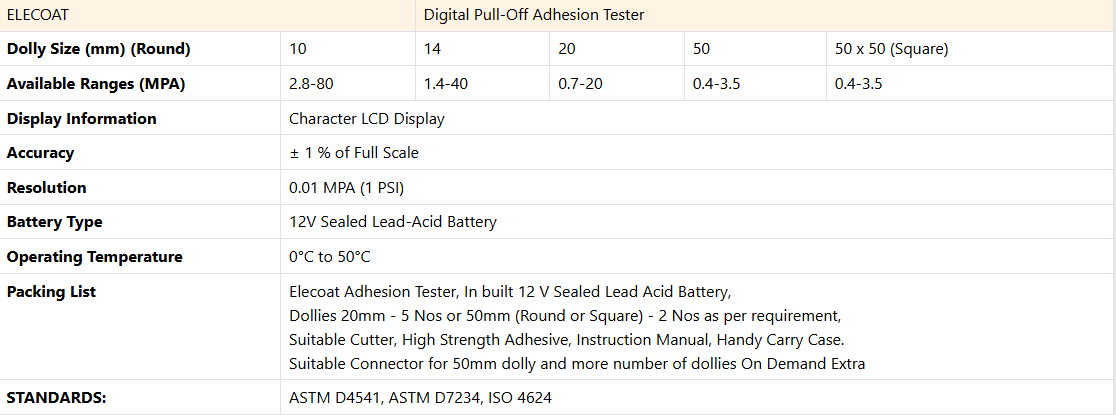

Technical Specifications

ELECOAT		Digital Pull-Off Adhesion Tester
Dolly Size (mm) (Round)	10	14	20	50	50 x 50 (Square)
Available Ranges (MPA)	2.8-80	1.4-40	0.7-20	0.4-3.5	0.4-3.5
Display Information	Character LCD Display
Accuracy	± 1 % of Full Scale
Resolution	0.01 MPA (1 PSI)
Battery Type	12V Sealed Lead-Acid Battery
Operating Temperature	0°C to 50°C
Packing List	Elecoat Adhesion Tester, In built 12 V Sealed Lead Acid Battery, Dollies 20mm - 5 Nos or 50mm (Round or Square) - 2 Nos as per requirement, Suitable Cutter, High Strength Adhesive, Instruction Manual, Handy Carry Case. Suitable Connector for 50mm dolly and more number of dollies On Demand Extra
STANDARDS:	ASTM D4541, ASTM D7234, ISO 4624

Acessories

Distinctive Competence

Instrument Designed by us are Indigenously Developed and Manufactured in India.
Instruments are manufactured Using Quality Precision Components which makes them Accurate and Reliable.
Instrument are Comparable to Finest similar Competitor in the World and works as Direct Import Substitute in India
Instrument are serviced for at least 10 Yrs after Domestic and International sales.
Instruments supplied are of Industrial ASTM/ISO Standards aligning them with Companies Standards
Instrument Innovation is Our Passion and there are VALUABLE CUSTOMERS who makes IT POSSIBLE
