HOLIDAY DETECTOR
INTRODUCTION
The term "Holiday" dates back to the days of the great wooden sailing ships. During the long slow voyages, ship maintenance was a must. One of the most important duties was that of the mast sealer. A sailor would seal the mast of the ship with tar to prevent the wood from rotting. If the sailor missed coating an area of the mast the wood would rot. It was said, the sailor must have taken a Holiday at that point thus not achieving a good coat of tar on the mast. Later as steel replaced wood, paint replaced tar. However, holidays live on. Holidays also known as pinholes void discontinuities.
Holiday Detector is an instrument used to detect holes in anti- corrosive coating (electrically insulated) on metallic pipes/surfaces. This test is carried before the pipes are laid underground.
The pipe is connected to earth (nominal) and an electrode, charged to high tension, is moved over the coating. At the place of a hole, arcing takes place and the instrument gives alarm.
The instrument consists of an electronic oscillator to convert small DC Voltage (12 V) to AC. A high voltage rectifier to give high tension DC output.
SPARK TESTER
A fixed 40KV stationary A/C Spark Tester is used to detect Pinhole, Puncture & Blank portion in thick (1mm to 10 mm) insulating coating (like FRP Lining, Glass Lining, Rubber Lining, Teflon Coating, P. U. Coating, Cement Coating etc...) on conductive material.

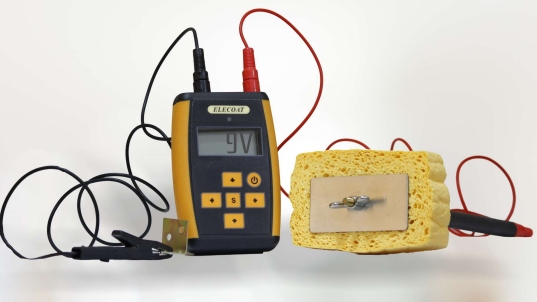

PIN HOLE DETECTOR
The Low Voltage Holiday Detector or Pinhole Detector is used for testing insulation coatings less than 500μm (20mils) thick on conductive substrates, and is ideal for powder coatings and other applications. This method detects pinholes that go directly to the bare substrate, aiding in deciding factor for coating over pin holes to reduce corrosion due to moisture and environmental effects.
FEATURES
-
1. Gauge Versatility:
Instrument is Handheld, light weighted, having big High Quality cables, sponge, steel plates, clear visual display along with Sound audible buzzer connectors provided on easy to carry ABS case with attractive tactile Membrane keypad.
-
2. Probe Handle:
Well-balanced Probe handle with High end Sponge offer exceptional handling and fast response.
-
3. Premium Accessories:
High Quality cables, sponge, steel plates, connectors provided
-
4. Readout:
Digital readout provided for easy access to selection of Voltage.

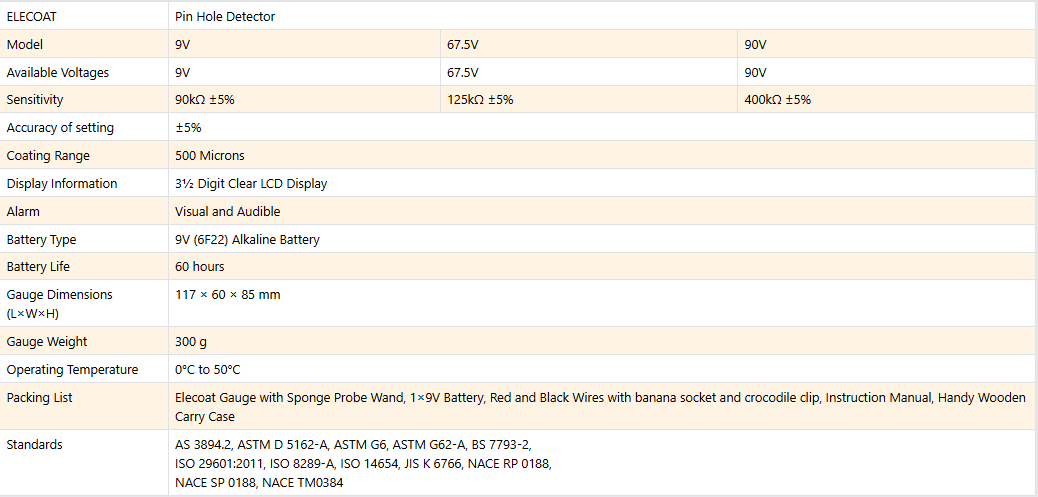

Technical Specifications
| ELECOAT | Pin Hole Detector | ||
| Model | 9V | 67.5V | 90V |
| Available Voltages | 9V | 67.5V | 90V |
| Sensitivity | 90kΩ ±5% | 125kΩ ±5% | 400kΩ ±5% |
| Accuracy of setting | ±5% | ||
| Coating Range | 500 Microns | ||
| Display Information | 3½ Digit Clear LCD Display | ||
| Alarm | Visual and Audible | ||
| Battery Type | 9V (6F22) Alkaline Battery | ||
| Battery Life | 60 hours | ||
| Gauge Dimensions (L×W×H) | 117 × 60 × 85 mm | ||
| Gauge Weight | 300 g | ||
| Operating Temperature | 0°C to 50°C | ||
| Packing List | Elecoat Gauge with Sponge Probe Wand, 1×9V Battery, Red and Black Wires with banana socket and crocodile clip, Instruction Manual, Handy Wooden Carry Case | ||
| Standards |
AS 3894.2, ASTM D 5162-A, ASTM G6, ASTM G62-A, BS 7793-2, ISO 29601:2011, ISO 8289-A, ISO 14654, JIS K 6766, NACE RP 0188, NACE SP 0188, NACE TM0384 | ||

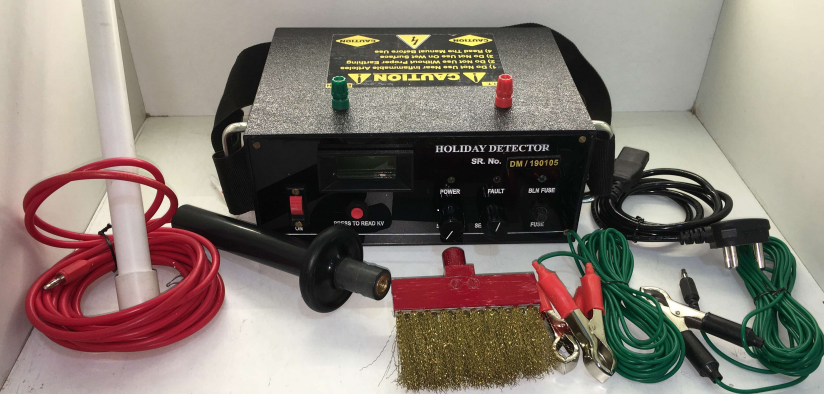

HOLIDAY DETECTOR
The High Voltage or Holiday Detection method is where a high voltage current is applied to a probe, which is passed over the coated surface.
The voltage used is dependent on the dielectric strength and thickness of the coating being tested, but typically the voltage should be high enough so that in areas where the coating is electrically weaker due to a flaw, there is sufficient voltage to breakdown the gap between the probe and the substrate. When this breakdown occurs, the current flows through the substrate, and back into the unit via a grounding cable, setting off an alarm to signal a flaw has been detected.
This allows you to detect flaws that don't go all the way down to the substrate, as well as voids within the coating.
However, it is vital that the voltage isn’t set too high, as this could breakdown and damage the coating, causing the unit to alarm when there are no flaws, and creating a flaw in the process. Testing with bright blue sparks is a clear sign the voltage is too high.
FEATURES
- Holiday Detector is a fully solid-state device and has no moving part. This has made the device maintenance-free, portable and light-weight.
- Pulsed DC compact or Continuous DC with Shock, Proof probe Handle.
- Lightweight, ergonomic design provides comfortable all-day use, reducing operator fatigue.

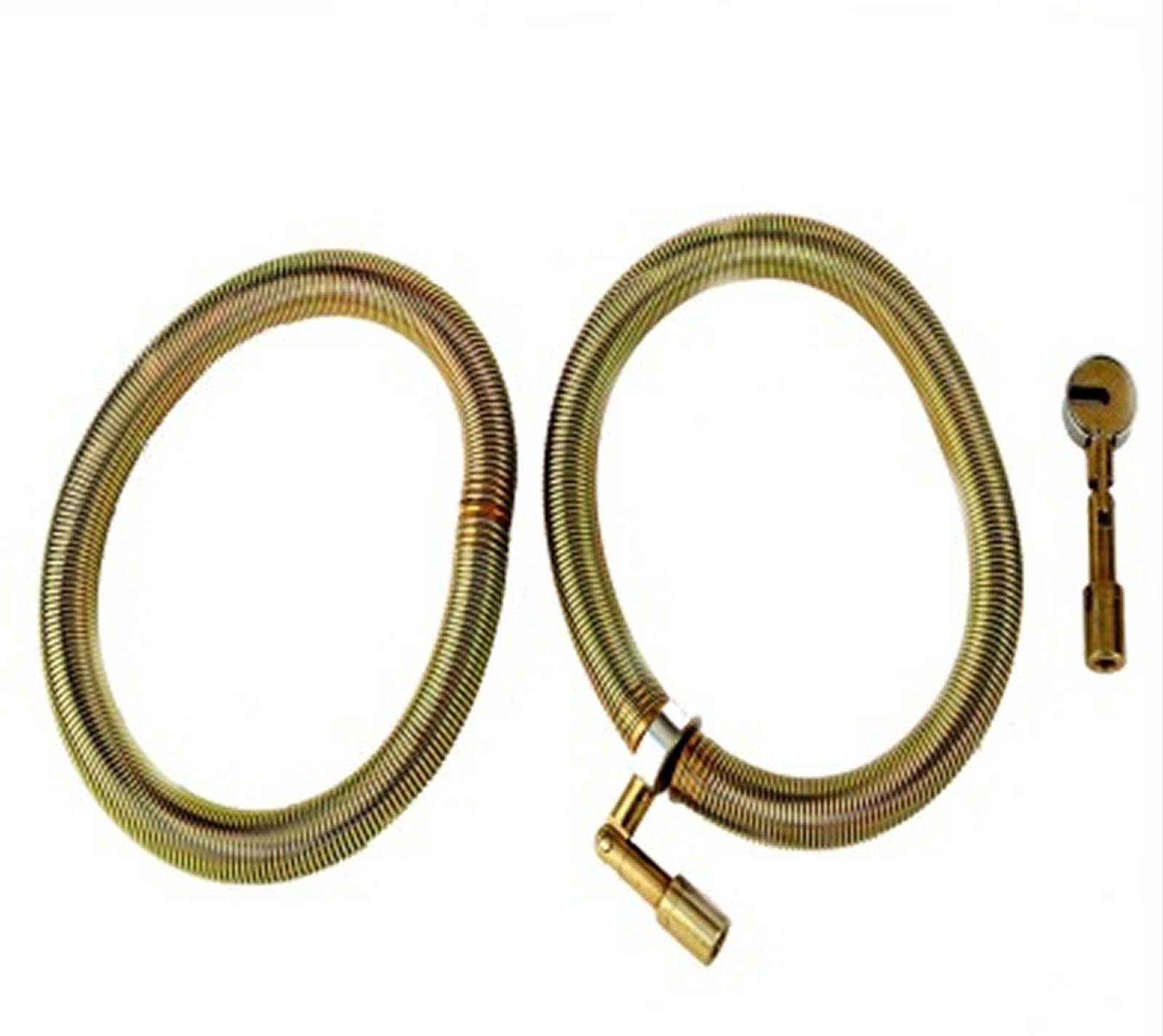

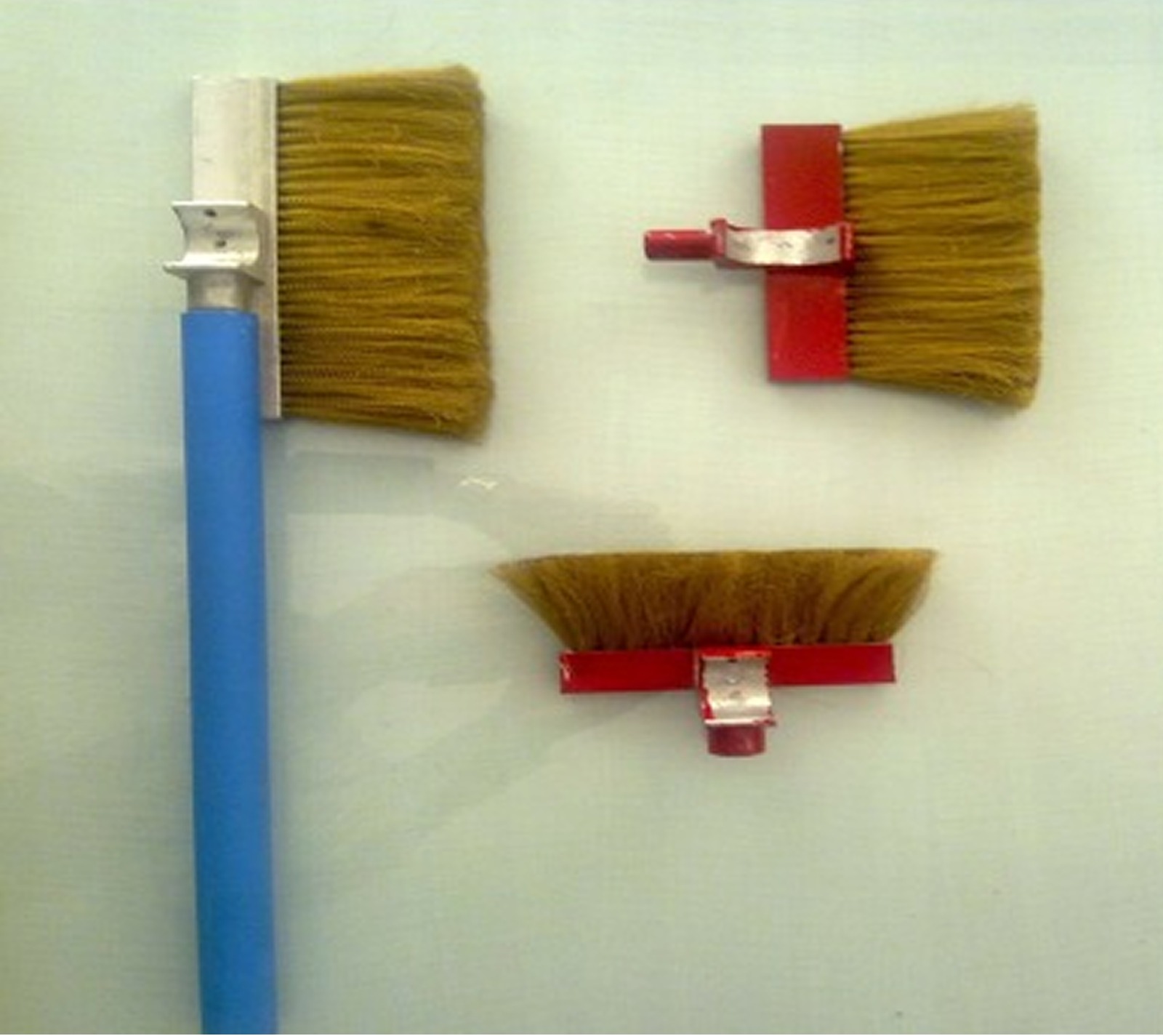

- Extensive electrode options—choose from a wide range of rolling spring and flat wire brush electrodes, custom sizes available upon request.

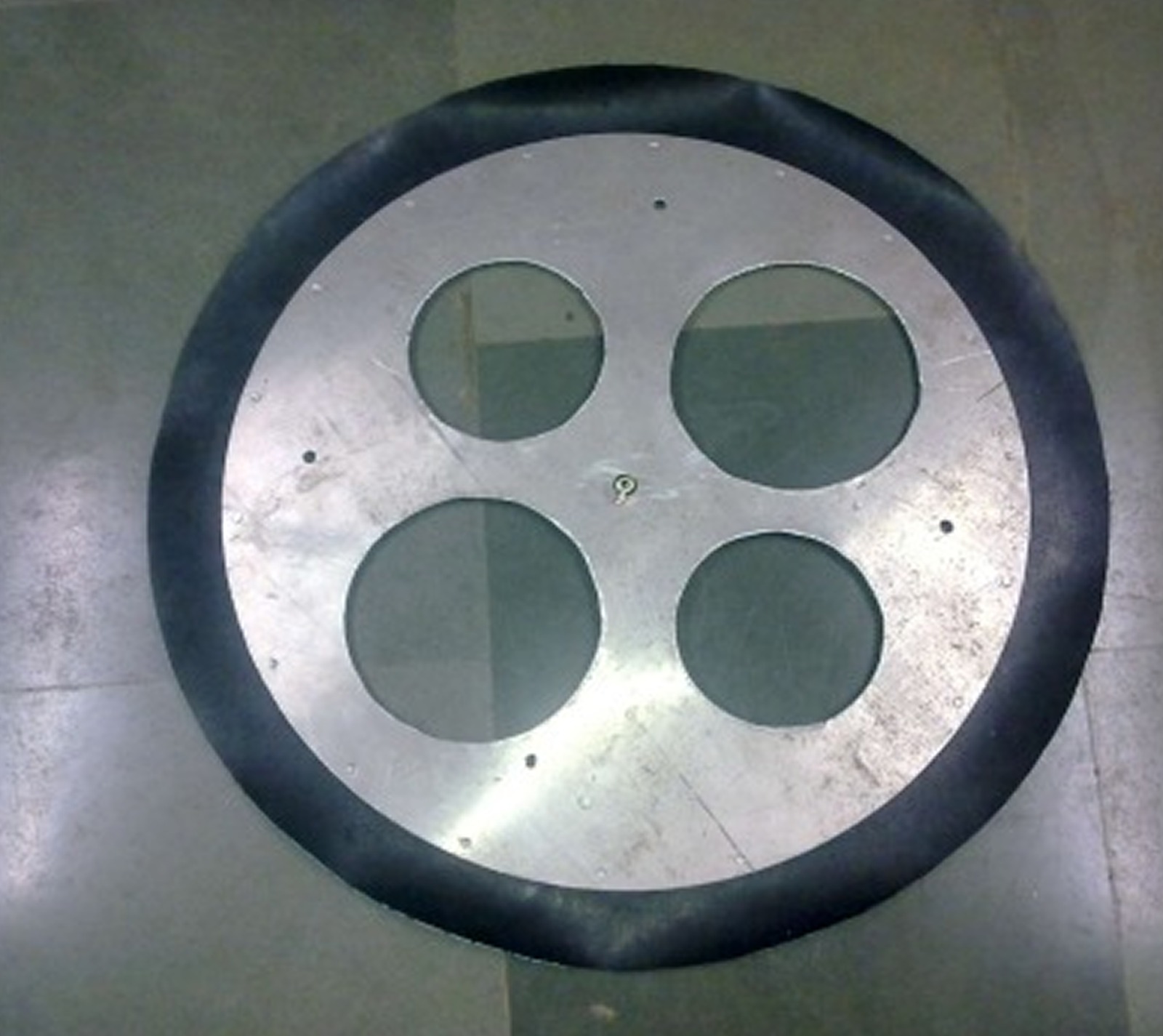

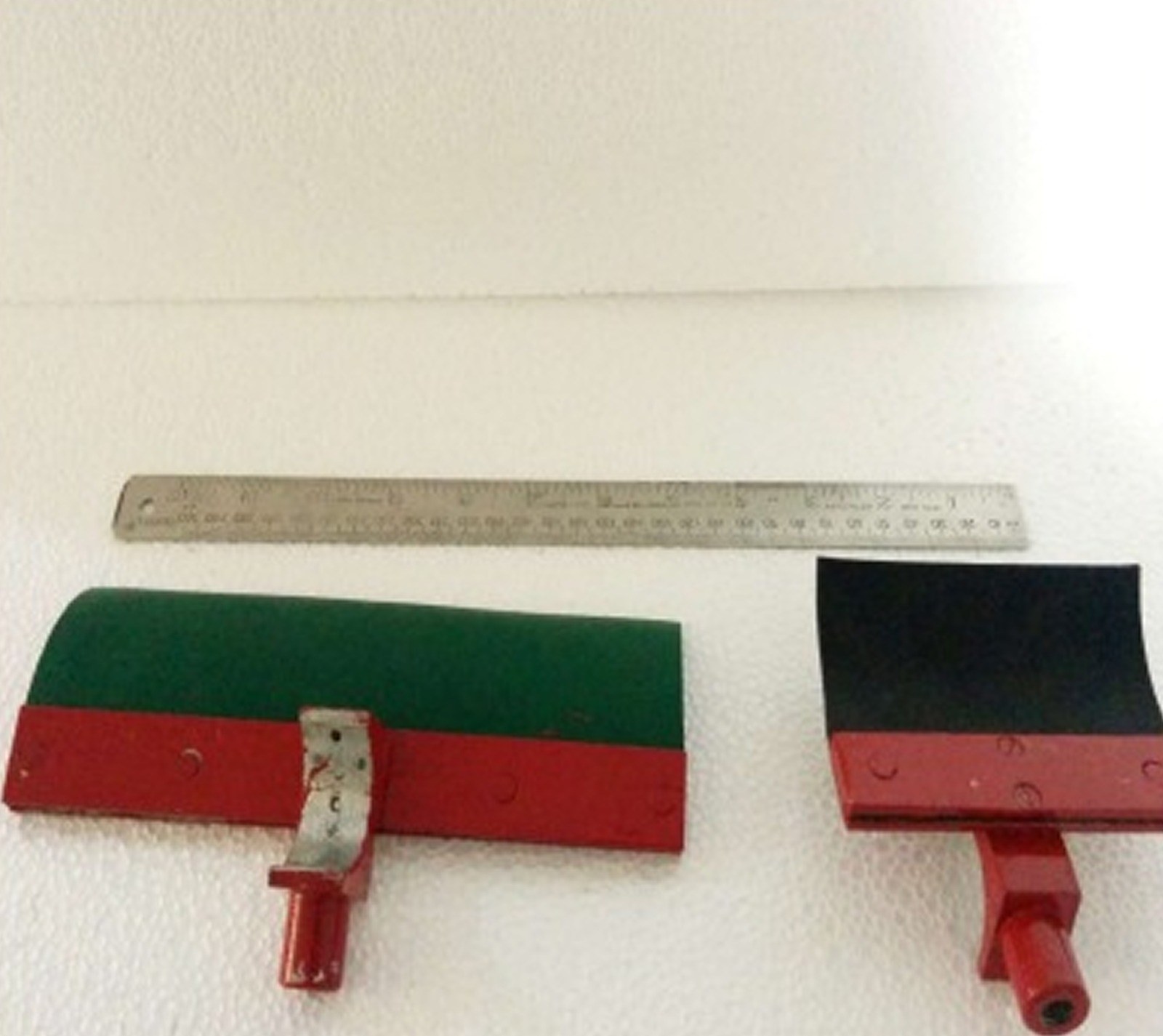

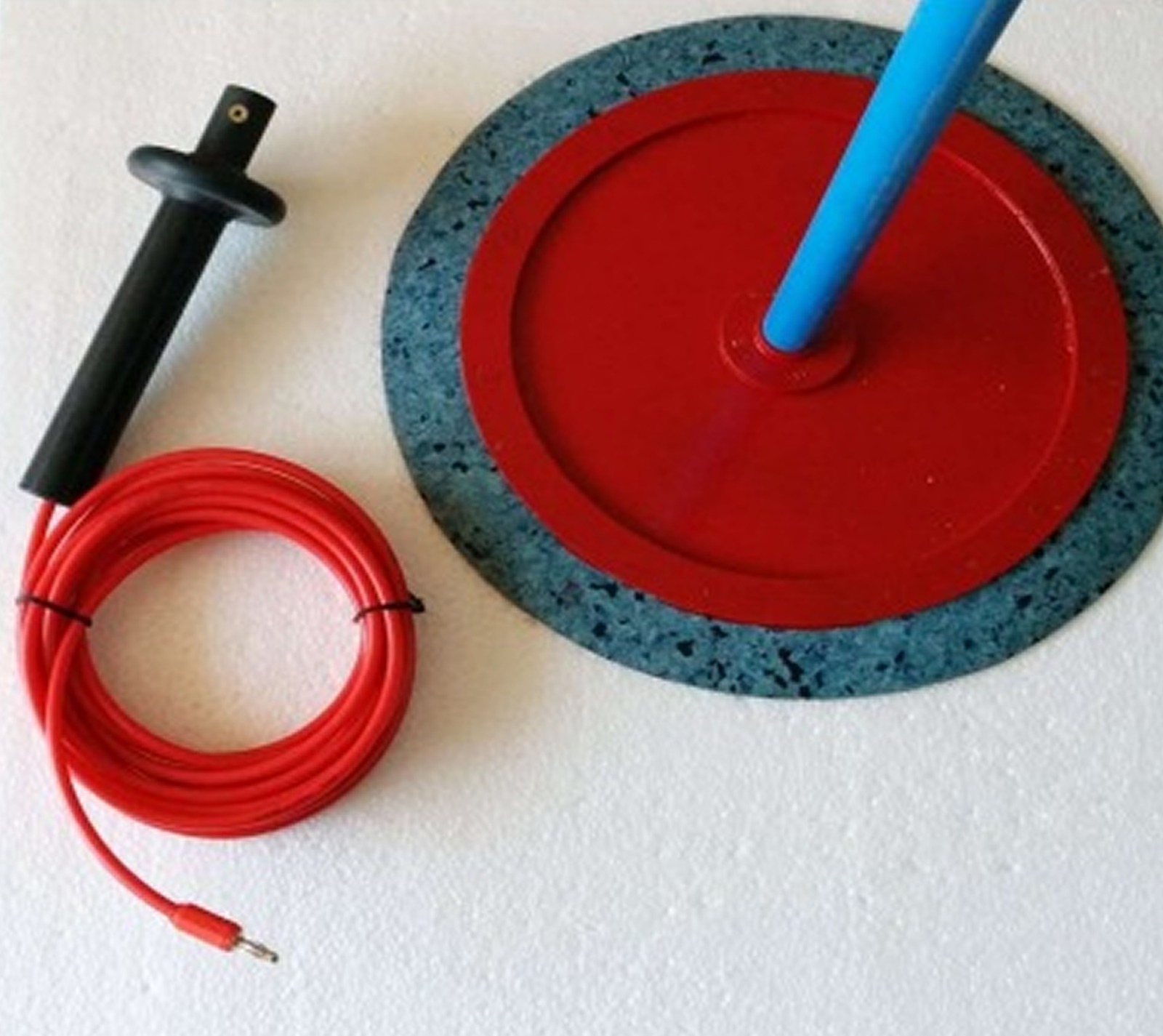

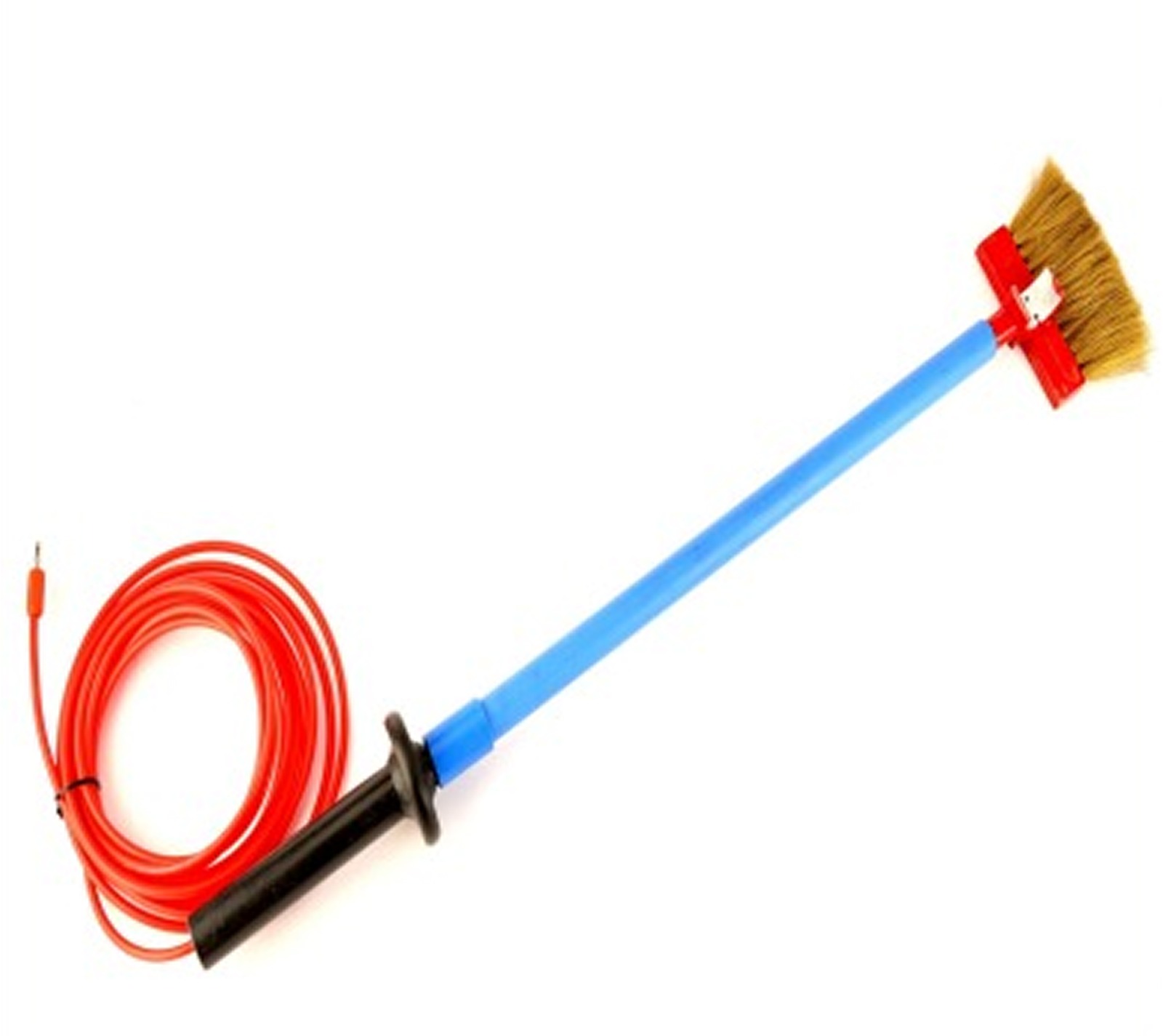

ACCESSORIES

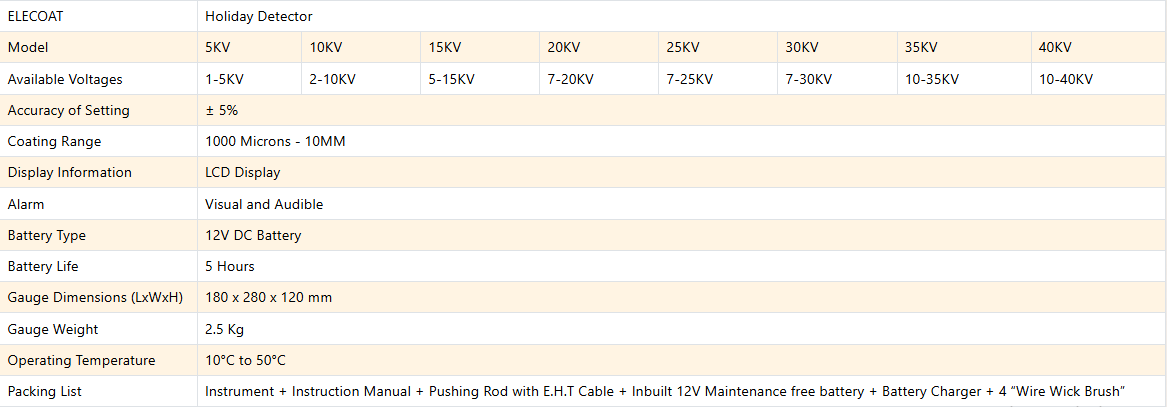

TECHNICAL SPECIFICATIONS
| ELECOAT | Holiday Detector | |||||||
|---|---|---|---|---|---|---|---|---|
| Model | 5KV | 10KV | 15KV | 20KV | 25KV | 30KV | 35KV | 40KV |
| Available Voltages | 1-5KV | 2-10KV | 5-15KV | 7-20KV | 7-25KV | 7-30KV | 10-35KV | 10-40KV |
| Accuracy of Setting | ± 5% | |||||||
| Coating Range | 1000 Microns - 10MM | |||||||
| Display Information | LCD Display | |||||||
| Alarm | Visual and Audible | |||||||
| Battery Type | 12V DC Battery | |||||||
| Battery Life | 5 Hours | |||||||
| Gauge Dimensions (LxWxH) | 180 x 280 x 120 mm | |||||||
| Gauge Weight | 2.5 Kg | |||||||
| Operating Temperature | 10°C to 50°C | |||||||
| Packing List | Instrument + Instruction Manual + Pushing Rod with E.H.T Cable + Inbuilt 12V Maintenance free battery + Battery Charger + 4 “Wire Wick Brush” | |||||||
RECOMMENDED VOLTAGES FOR HOLIDAY TEST
| Coating Thickness | Test Voltage | Coating Thickness | Test Voltage |
|---|---|---|---|
| Up to 500μm | 2.3kV | 2800μm-2900μm | 16.0kV |
| 500μm-600μm | 2.9kV | 2900μm-3000μm | 16.5kV |
| 600μm-700μm | 3.5kV | 3000μm-3100μm | 17.0kV |
| 700μm-800μm | 4.0kV | 3100μm-3200μm | 17.5kV |
| 800μm-900μm | 4.5kV | 3200μm-3300μm | 18.0kV |
| 900μm-1000μm | 5.0kV | 3300μm-3400μm | 18.5kV |
| 1000μm-1100μm | 5.5kV | 3400μm-3500μm | 19.0kV |
| 1100μm-1200μm | 6.5kV | 3500μm-3600μm | 19.5kV |
| 1200μm-1300μm | 7.0kV | 3600μm-3700μm | 20.0kV |
| 1300μm-1400μm | 7.5kV | 3700μm-3800μm | 21.0kV |
| 1400μm-1500μm | 8.0kV | 3800μm-3900μm | 21.5kV |
| 1500μm-1600μm | 8.5kV | 3900μm-4000μm | 22.0kV |
| 1600μm-1700μm | 9.0kV | 4000μm-4100μm | 22.5kV |
| 1700μm-1800μm | 10.0kV | 4100μm-4200μm | 23.0kV |
| 1800μm-1900μm | 10.5kV | 4200μm-4300μm | 24.0kV |
| 1900μm-2000μm | 11.0kV | 4300μm-4400μm | 25.0kV |
| 2000μm-2100μm | 11.7kV | 4400μm-4500μm | 25.8kV |
| 2100μm-2200μm | 12.4kV | 4500μm-4600μm | 26.4kV |
| 2200μm-2300μm | 13.0kV | 4600μm-4700μm | 26.8kV |
| 2300μm-2400μm | 13.5kV | 4700μm-4800μm | 27.4kV |
| 2400μm-2500μm | 14.0kV | 4800μm-4900μm | 28.0kV |
| 2500μm-2600μm | 14.5kV | 4900μm-5000μm | 28.5kV |
| 2600μm-2700μm | 15.0kV | 4900μm-5300μm | 29.0kV |
| 2700μm-2800μm | 15.5kV | 5300μm-8000μm | 30.0kV |
Distinctive Competence
- Instrument Designed by us are Indigenously Developed and Manufactured in India.
- Instruments are manufactured Using Quality Precision Components which makes them Accurate and Reliable.
- Instrument are Comparable to Finest similar Competitor in the World and works as Direct Import Substitute in India
- Instrument are serviced for at least 10 Yrs after Domestic and International sales.
- Instruments supplied are of Industrial ASTM/ISO Standards aligning them with Companies Standards
- Instrument Innovation is Our Passion and there are VALUABLE CUSTOMERS who makes IT POSSIBLE
