MOISTURE METER PRINCIPLE AND WORKING
INTRODUCTION
Moisture meters are highly advanced devices, offer precision measurement using electrical resistance technique in detecting and accurately measuring moisture levels within the measuring samples. .
Wood Moisture Equivalent (WME) is a scale of measuring moisture content in material comparing it with wood. The natural characteristics of wood and parameters like consistent Electrical conductivity, Hygroscopic nature Indicator of Microbial Growth Risk and its interaction with moisture act as a universal “barometer,” ensuring moisture readings are accurate and comparable across different materials. WME simplifies comparisons between materials and is considered standard method for measuring the actual moisture content of various materials.
Pin-Type moisture meters are the most accurate and repeatable moisture measurement devices.
Features

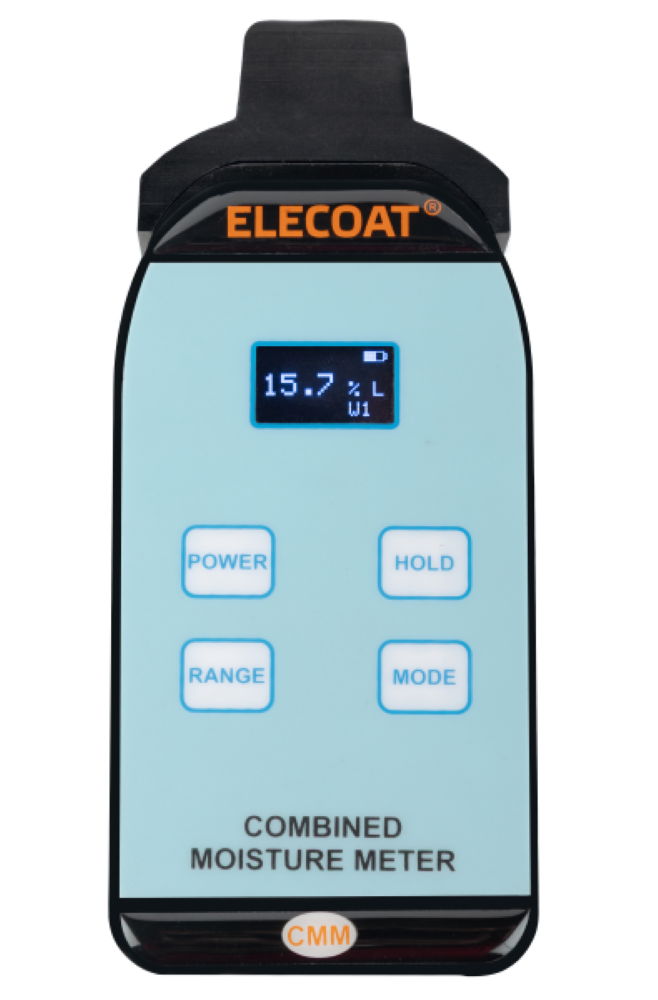

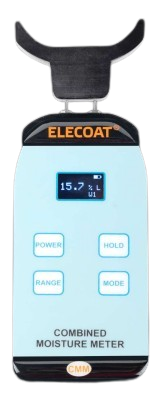

- Instrument is Handheld, light weighted, having clear visual display along with sturdy designed Pins and calibrator cap on easy to carry enclosure case with attractive tactile Membrane keypad.
- Accurately Calibrated for Scales like: Wood1, Wood2, Concrete, Plaster, Linear.
Features
- LED Instrument is Handheld, light weighted, having clear visual display along with sturdy designed Pins and calibrator cap on easy to carry enclosure case with attractive tactile Membrane keypad.
- Accurately Calibrated for Scales like: Wood1, Wood2, Concrete, Plaster, Linear.

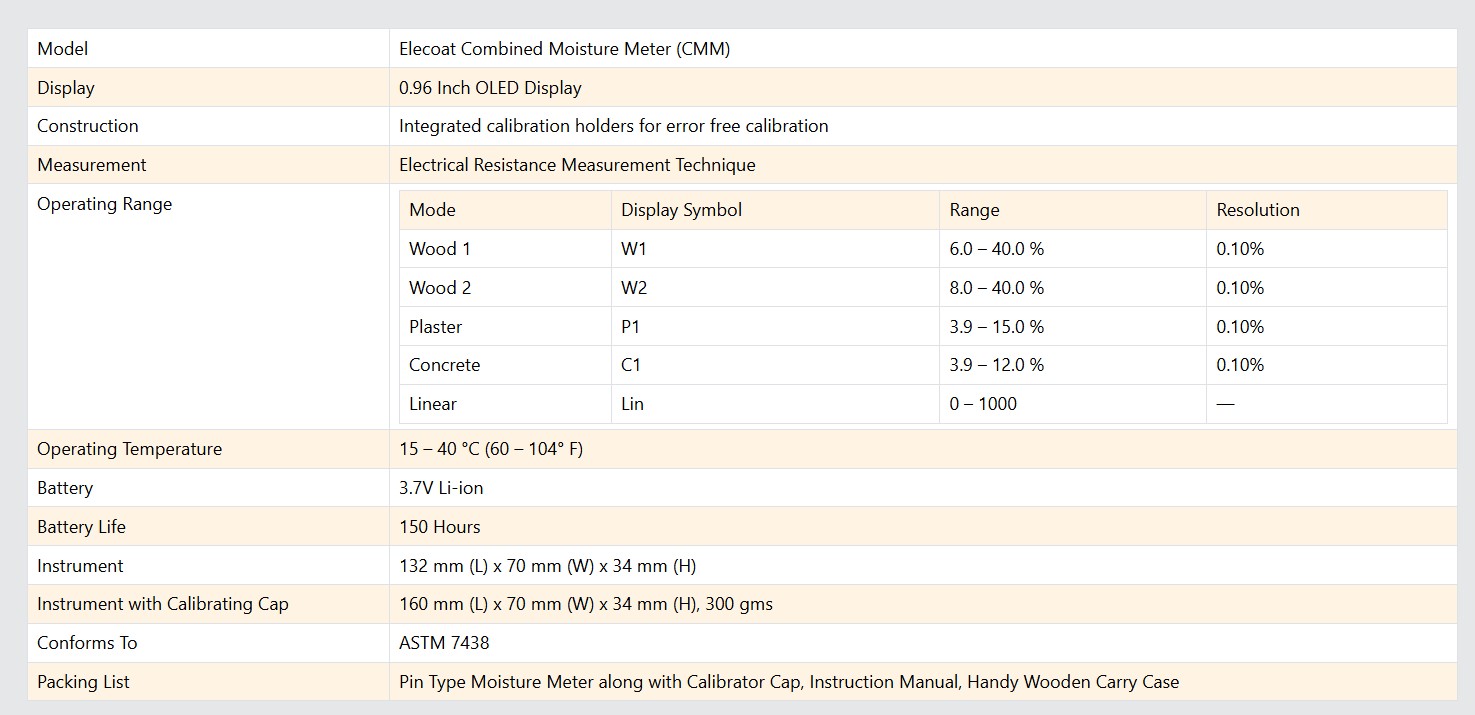

Technical Specifications
| Model | Elecoat Combined Moisture Meter (CMM) | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Display | 0.96 Inch OLED Display | ||||||||||||||||||||||||
| Construction | Integrated calibration holders for error free calibration | ||||||||||||||||||||||||
| Measurement | Electrical Resistance Measurement Technique | ||||||||||||||||||||||||
| Operating Range |
|
||||||||||||||||||||||||
| Operating Temperature | 15 – 40 °C (60 – 104° F) | ||||||||||||||||||||||||
| Battery | 3.7V Li-ion | ||||||||||||||||||||||||
| Battery Life | 150 Hours | ||||||||||||||||||||||||
| Instrument | 132 mm (L) x 70 mm (W) x 34 mm (H) | ||||||||||||||||||||||||
| Instrument with Calibrating Cap | 160 mm (L) x 70 mm (W) x 34 mm (H), 300 gms | ||||||||||||||||||||||||
| Conforms To | ASTM 7438 | ||||||||||||||||||||||||
| Packing List | Pin Type Moisture Meter along with Calibrator Cap, Instruction Manual, Handy Wooden Carry Case |
Distinctive Competence
- Instrument Designed by us are Indigenously Developed and Manufactured in India.
- Instruments are manufactured Using Quality Precision Components which makes them Accurate and Reliable.
- Instrument are Comparable to Finest similar Competitor in the World and works as Direct Import Substitute in India
- Instrument are serviced for at least 10 Yrs after Domestic and International sales.
- Instruments supplied are of Industrial ASTM/ISO Standards aligning them with Companies Standards
- Instrument Innovation is Our Passion and there are VALUABLE CUSTOMERS who makes IT POSSIBLE
