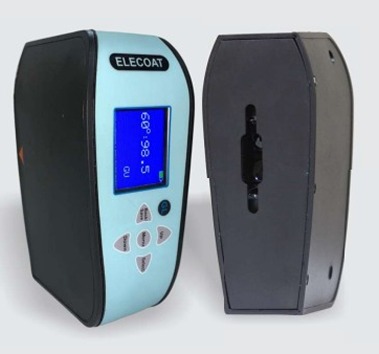

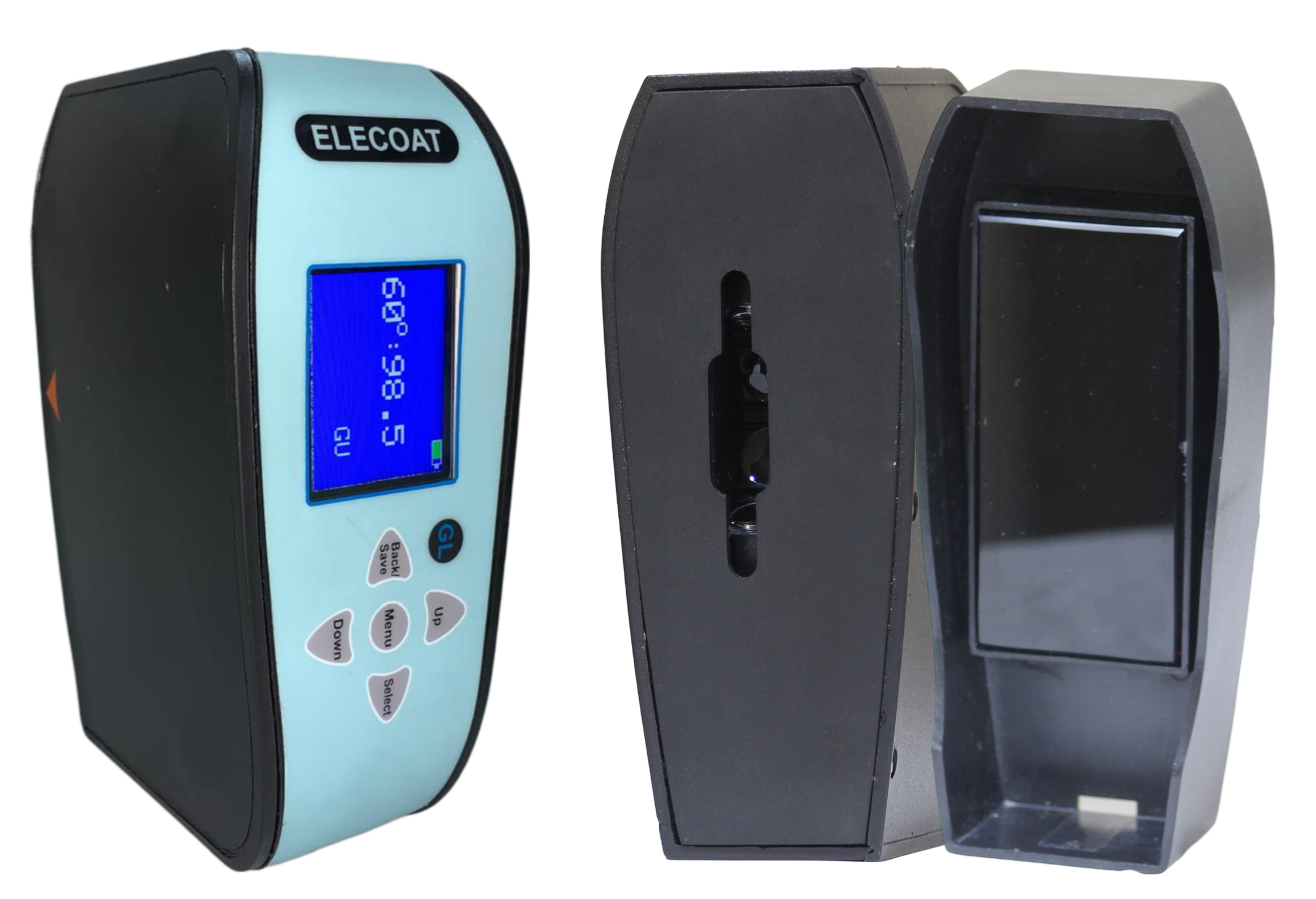

Gloss Meter

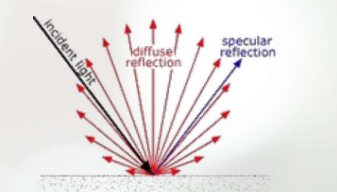

Gloss meter is an instrument which is used to measure the specular reflection (gloss) of a surface. Gloss is determined by projecting a beam of light at a fixed intensity and angle onto a surface and measuring the amount of reflected light at an equal but opposite angle.
Choosing The Correct Angle for Gloss Measurement

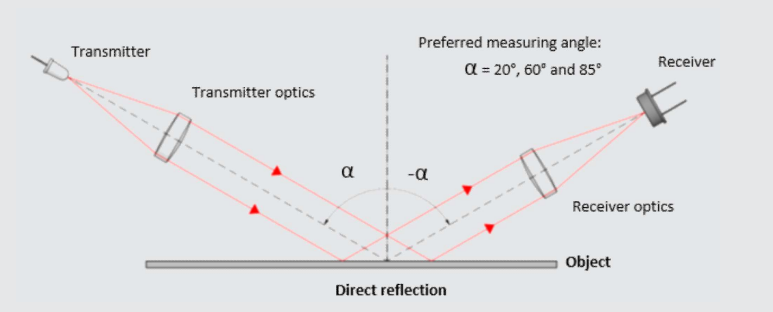

Measurement angle refers to the angle between the incident and reflected light. Three measurement angles (20°, 60°, and 85°) are specified to cover the majority of industrial coatings applications. The angle is selected based on the anticipated gloss range, as shown in the following table.
| Gloss Range | 60° Value | Notes |
|---|---|---|
| High Gloss | >70 GU | If measurement exceeds 70 GU, change test set up to 20° |
| Medium Gloss | 10 – 70 GU | |
| Low Gloss | < 10 GU | If measurement is less than 10 GU, change test set up to 85° |
For example, if the measurement made at 60° is greater than 70 GU, the measurement angle should be changed to 20° to optimize measurement accuracy. Two types of instruments are available: 60° single angle, and Tri angle 20°, 60° and 85°. Two angles less frequently used for other materials: angle of 45° is specified for the measurement of ceramics, films, textiles and anodised aluminium, while 75° is specified for paper.
Gloss Units
The measurement scale, Gloss Units (GU), of a glossmeter is a scaling based on a highly polished reference black glass standard with a defined refractive index having a specular reflectance of 100 GU at the specified angle. This standard is used to establish an upper point calibration of 100 with the lower end point established at 0 on a perfectly matt surface. This scaling is suitable for most non-metallic coatings and materials (paints and plastics) as they generally fall within this range. For other materials, highly reflective in appearance (mirrors, plated/raw metal components), higher values can be achieved reaching 2000 Gloss Units. For transparent materials, these values can also be increased due to multiple reflections within the material.
Models
FEATURES
-
Principle Technique
Non-Destructive: Gloss-Meter utilize non-destructive testing methods, allowing measurement without damaging the coating and substrate. This saves both time and resources, making them ideal for various industries. - Gauge Versatility: Instrument is Handheld, light weighted, having big clear visual display along with Sound audible buzzer on easy to carry ABS case with attractive tactile Membrane keypad.
- Sensor: With advanced sensor technology and precise calibration offer exceptional reading accuracy, speed and repeatability.
- Gauge Compatibility: Compatible with various coating materials, including paint, powder, Plating, Anodising and more on Different Substrates.
- Wide Application: From automotive manufacturing to aerospace, marine, and construction, these gauges find application across a wide range of industries. These Gauges provide precise measurements, ensuring compliance with strict industry standards and delivering reliable data for quality control.
Technical Specifications
| ELECOAT | Glossmeter | ||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Model | Available Ranges | |||||||
| Single Angle (60°) | 0-300 GU @ 60° | ||||||||

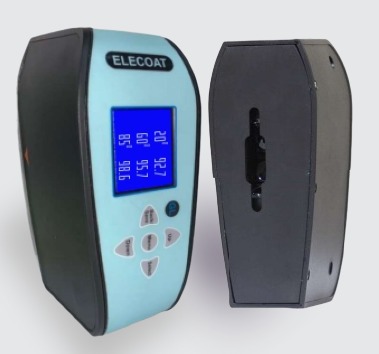

| Tri-Angle (20°/60°/85°) | 0-2000 GU @ 20° 0-1000 GU @ 60° 0-160 GU @ 85° | ||||||||
| Display Information | Graphic TFT Colour easy to read Display | ||||||||
| Repeatability | 0.2GU < 100 0.2% > 100 | ||||||||
| Reproducibility | 0.5GU < 100 0.5% > 100 | ||||||||
| Battery Type | Li-Ion Battery | ||||||||
| Battery Life | 30 hours | ||||||||
| Dimensions (LxWxH) | 145 x 60 x 85 mm | ||||||||
| Gauge Weight | 300 g | ||||||||
| Operating Temperature | 0°C to 50°C | ||||||||
| Packing List |
Elecoat Gauge, Calibrated Plate, Micro Fibre Cloth, 1x inbuilt Li Ion Battery, C-Type Charger, Instruction Manual, Handy Wooden Carry Case |
||||||||
| STANDARDS | ISO 2813, ASTM D523, ASTM D2457, DIN 67530, JIS Z 8741, JIS K 5600-4-7 | ||||||||
| ELECOAT | Glossmeter | |
|---|---|---|
| Model | Single Angle (60°) | Tri-Angle (20°/60°/85°) |
| Available Ranges | 0-300 GU @ 60° |
0-2000 GU @ 20° 0-1000 GU @ 60° 0-160 GU @ 85° |
| Display Information | Graphic TFT Colour easy to read Display | |
| Repeatability | 0.2GU < 100 0.2% > 100 | |
| Reproducibility | 0.5GU < 100 0.5% > 100 | |
| Battery Type | Li-Ion Battery | |
| Battery Life | 30 hours | |
| Dimensions (LxWxH) | 145 x 60 x 85 mm | |
| Gauge Weight | 300 g | |
| Operating Temperature | 0°C to 50°C | |
| Packing List |
Elecoat Gauge, Calibrated Plate, Micro Fibre Cloth, 1x inbuilt Li Ion Battery, C-Type Charger, Instruction Manual, Handy Wooden Carry Case |
|
| STANDARDS | ISO 2813, ASTM D523, ASTM D2457, DIN 67530, JIS Z 8741, JIS K 5600-4-7 | |
Distinctive Competence
- Instrument Designed by us are Indigenously Developed and Manufactured in India.
- Instruments are manufactured Using Quality Precision Components which makes them Accurate and Reliable.
- Instrument are Comparable to Finest similar Competitor in the World and works as Direct Import Substitute in India
- Instrument are serviced for at least 10 Yrs after Domestic and International sales.
- Instruments supplied are of Industrial ASTM/ISO Standards aligning them with Companies Standards
- Instrument Innovation is Our Passion and there are VALUABLE CUSTOMERS who makes IT POSSIBLE
